| Attribute | Value |
|---|---|
| Type | Drying Oven |
| Applications | Chemicals Processing, Plastics Processing |
| Voltage Options | 220V, 380V, 110V, 480V |

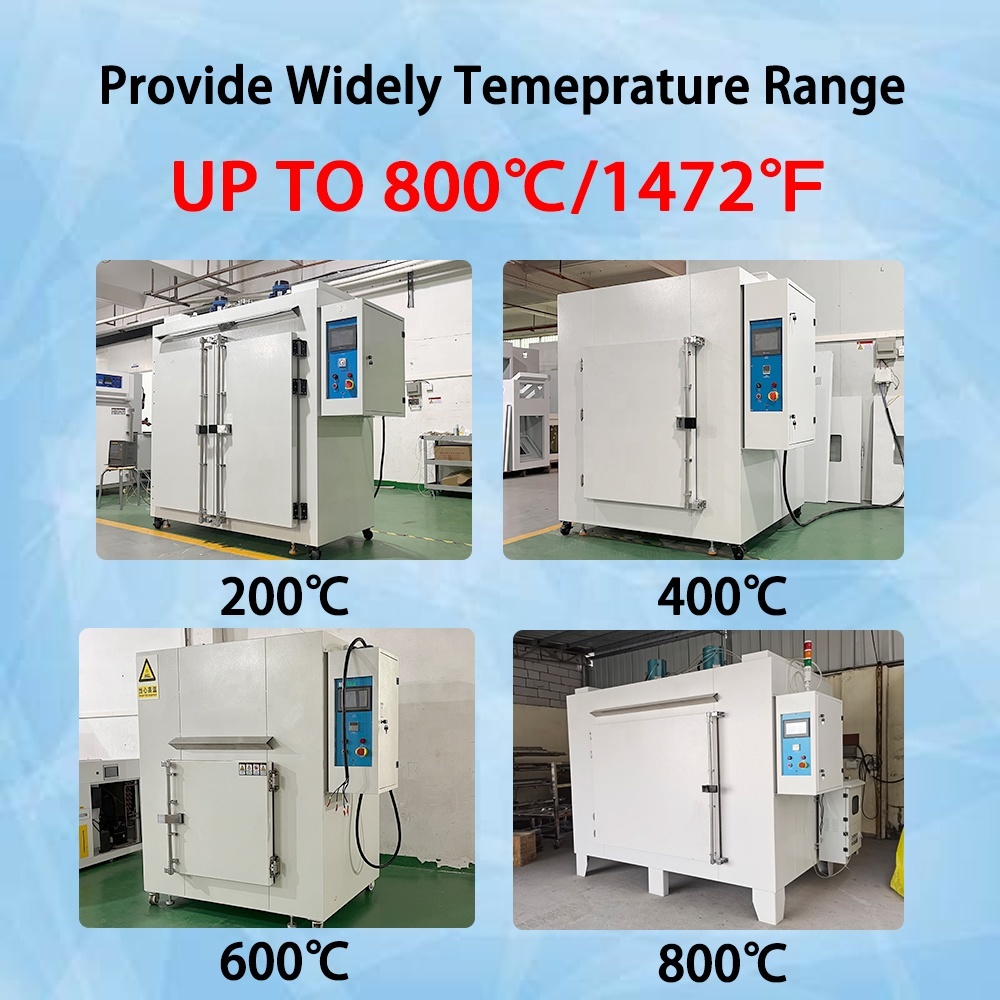

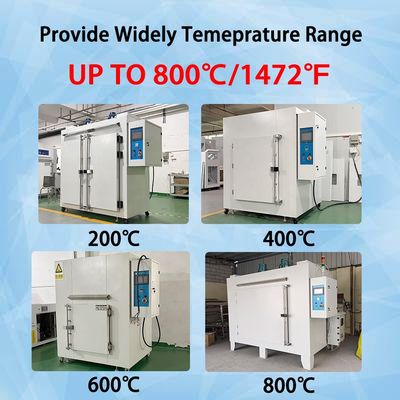

| Temperature Range | Up to 800℃ |
| Heating Method | Electric Heating |
| Material | SUS304 Stainless Steel |
| Controller | PID Thermostat or PLC controller |
| Heating Speed | RT~100℃ in 10 minutes |
| Accuracy | ±0.3℃ |
| Uniformity | ±1% |

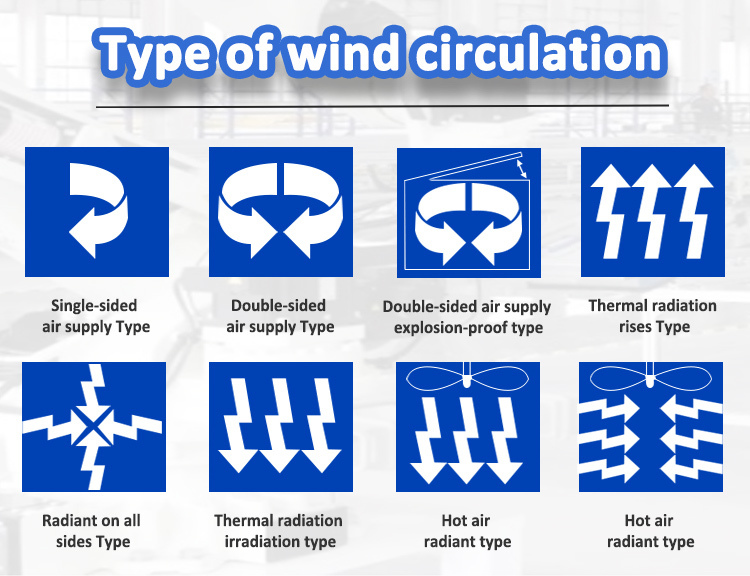

| Circulation System | Air force level cycle |
| Warranty | 1 Year |
| Weight | 215 kg |
| Model | Inner Size W×H×D (cm) | External Size W×H×D (cm) | Power | Power Rate (KW) |
|---|---|---|---|---|
| LY-645 | 45×40×40 | 66×92×55 | 220V/380V | 3.5 |
| LY-660 | 50×60×50 | 70×125×65 | 220V/380V | 4.5 |
| LY-690 | 60×90×50 | 80×156×65 | 220V/380V | 5.5 |
| LY-6100 | 80×100×60 | 100×166×75 | 220V/380V | 8 |
| LY-6120 | 90×120×60 | 110×186×75 | 220V/380V | 10 |
| LY-6140 | 140×120×60 | 160×186×75 | 220V/380V | 12 |
| LY-6160 | 160×140×80 | 180×206×97 | 220V/380V | 14 |
| LY-6180 | 180×140×100 | 200×200×118 | 220V/380V | 16 |
| LY-OEM | Custom specifications available | |||
